I finally have the Zeno Reset board back in stock. The cost is $49.99 plus $6.00 for shipping via first class mail (Continental US ONLY, please email if you are OCONUS). Email me here if you have any questions.

• Zeno Reset Board shipped USPS 1st Class Package
• One Zeno Reset Board shipped USPS 3-Day Priority







-Two brand new fuses for the Sony PS4 BDP-020 daughterboard. F201 and F203.

-These are surface mount fuses and are package size 0402. This post is for one of each, one F201 and one F203.

-F201 is the main peripheral supply fuse for the BD7763EFV motor driver IC. F203 is the fuse for the load/eject motor.

-If F203 blew you should replace your load/eject motor as well (PN: KLD-002 or KLD-001 depending on your system).

If you would like to purchase a set, please email me here.

Repair service for Tecmark control boards made for Gatsby and Blue Ridge Spa’s.

Included in repair service is an optional board modification that allows for compatibility with new 65W circulation pumps. New 65W pumps cause flow errors on unmodified boards.

Repair charge is: $150.00 (return shipping included)

For more information please email me here.

Part numbers covered:

SCBBRD-1042

SCBBRD-1044

If you have any questions, email me here.
Purchase Links:

• One Zeno Replacement Battery shipped as USPS 1st Class Package
• One Zeno Replacement Battery shipped as USPS 3-Day Priority Package



I have a batch of replacement batteries available for purchase. The price is $21 + Shipping. These batteries are for the Original Zeno only. If you do not have a removable tip on your Zeno then this battery will not work for you.

Battery Info: 3.6V AAA NiMH 1000mAh

Replacement Instructions:

• • In addition to your zeno and a replacement battery you will need a hair dryer (or something to soften up the plastic) and a letter opener (or something will a long flat edge, but not too sharp).

• • If you have a Zeno with a charging plug insert that is held in place by the back cover your job will be easier. But if you have one with a charging plug insert that is held in place by an adjacent hole, the procedure is the same but is not as easy…
  • First, we need to soften up the plastic a bit. Take the hair dryer and warm up the back cover of the Zeno until it is warm maybe 60 secs at the most, but use your best judgement. Then hold the zeno with the back cover facing up and the tip facing you. Insert the letter in between the back cover and the side of the Zeno (this is where it is easier if the charging insert is held by the ack cover).

• • Once the edge is under the cover slide it down towards the bottom of the Zeno and round the corner. You want to end up with the letter opener under the back cover at the bottom of the Zeno.

• • Then, push the letter opener towards the tip of the Zeno and pry the cover up. You want to push some holding tabs back so that the cover will lift out. If you put sufficient force on the cover towards the tip when you pry up you will not break any tabs. But, generally, it is ok if you break one of them and it is not terrible if you break both. The cover will still stay in place when re-inserted.

• • Once you have the bottom of the back cover lifted, remove the cover by prying up as if it were hinged near the top of the Zeno.

• • ***With the cover removed, grab the rubber charging port plug if you have one and set it aside. You dont want to lose it.
  • From there you will be able to access and replace the battery. The original battery will have a foam boarder that can be carefully removed and placed on your replacement battery. It is not required but will help reduce battery rattle.

• When you are ready to replace the cover, re-install the charging port cover and be sure to install the top of the cover first (two tabs) and then push down like you are closing a door.
• That’s it : )



!! FREE ZENO TIP REFILLS !!

I am happy to reset your tip(s) for free but you must pay for return shipping which is six stamps. If you have so many tips that your package weighs over 3 ounces the postage will be more. Reset is only available for the original Zeno, Zeno Pro, Zeno Mini and ZenoMD. If your tip cannot be removed I cannot reset it.

  -Please use a padded envelope to send your zeno tip(s).

  -Please do not affix the return envelope postage to anything. I need the six stamps for return postage loose.

  -Please ship your zeno tip to me with the correct postage, 6 stamps. ***Any envelope over one quarter inch thick is considered a package and must have package postage. Any package that arrives postage due will be returned to sender.

  -Please place your tip and six stamps for return shipping in a padded envelope and mail to: contact me here for mailing address.

Once received I will reset your tip to 240 counts and have it back in the mail pronto! If you put your email address in the envelope I will email you when I send it back out.



SEE ALL POSTS ABOUT THE ZENO HACK!!!

PDF Instructions

Zeno Reset Board Instructions
*NOTE: Do not insert or remove the tip while the board is powered up. Doing so may corrupt the memory in your Zeno tip. If for some reason
this does occur you can send the tip to me for repair.
*The instructions are also printed on the back of the circuit board.

1. Plug your Zeno tip into the Zeno Reset Board. If you have a Zeno Mini tip, please make sure the sticker on the tip is lined up with the “45 Sticker” label on the board. Zeno mini tips plugged in backwards will not reset.

2. Attach a powered USB cable to the reset board. The board connection is a USB mini. A USB micro will not work.

3. Allow the tip to reset. The LED flashes while resetting and will illuminate solid once complete.

4. Remove the USB Cable.

5. Remove the tip and enjoy your freshly reset tip : )

If you have sent your zeno tips to me for a reset and haven’t received them back, please get a hold of me here. I received the below tips with the return address missing due to envelope damage. If you can tell me approx when the tips were sent and what accompanied the tips the I will mail them back to you. Thanks!

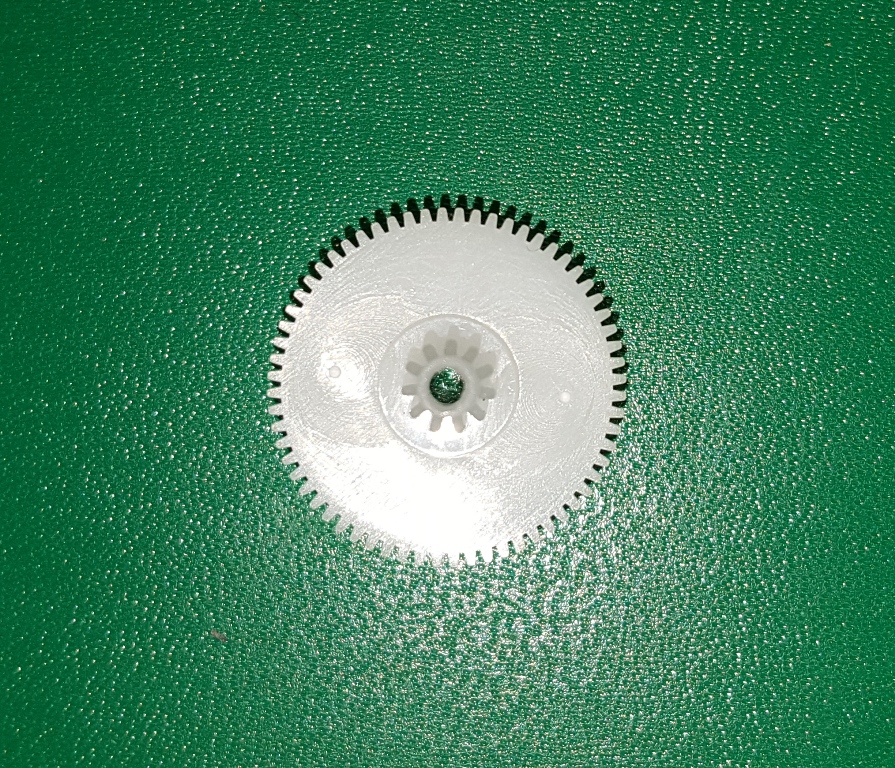

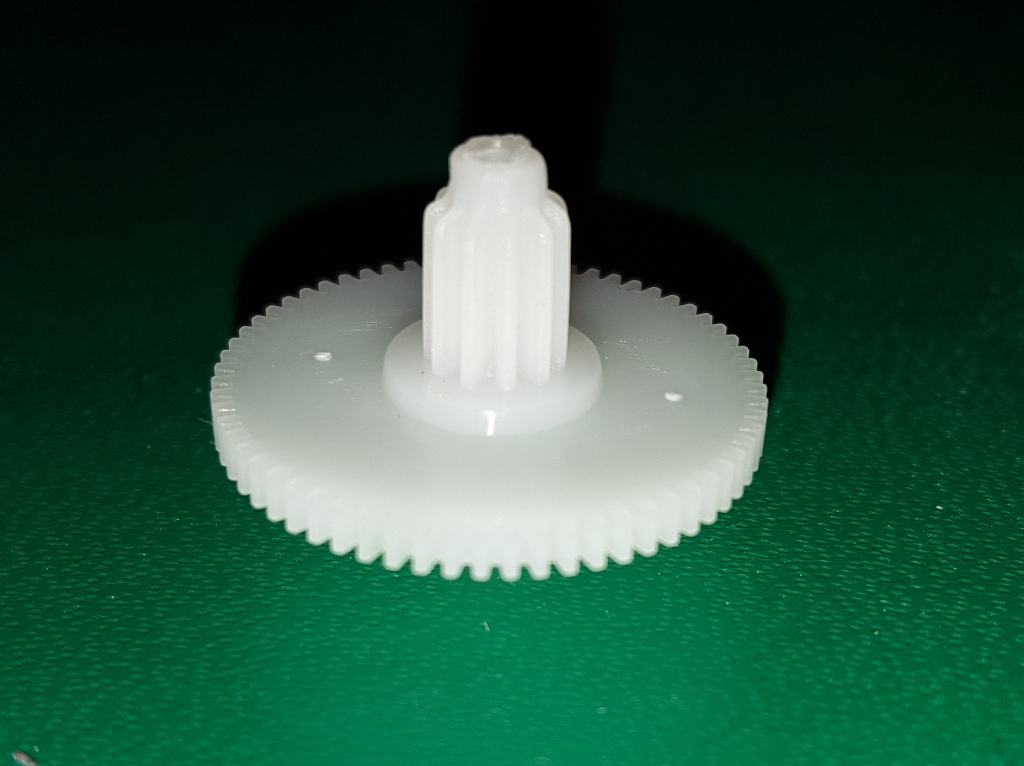

I have a couple of brand new laser head tray drive gears available if anyone is interested. This is teh intermediate compound gear that allows the small dc motor to position the laser head on the rails. It fits the RCD1 for sure and should also fit CDD-522, D740, RCD1.3D, CDM14 & CDM-14. The cost is $40 each and that includes USPS priority shipping.



Rough dimensions:
Height 0.563″
Outer gear diameter 0.776″
Inner gear diameter 0.198″

I have just received the next batch of reset board PCB’s. Should have some boards built and stock replenished very shortly!

If your Original Zeno will no longer charge it is probably time to change your battery out. A standard cordless phone battery works like a champ but there is a little soldering involved as the connectors are different. If this is something you are uncomfortable performing I am happy to provide this service for $20. I will try to get a step by step instruction on the replacement up soon. Contact me here if you would like your battery replaced.
