Zeno Tip Extender
by on Jan.09, 2011, under Matt's Projects

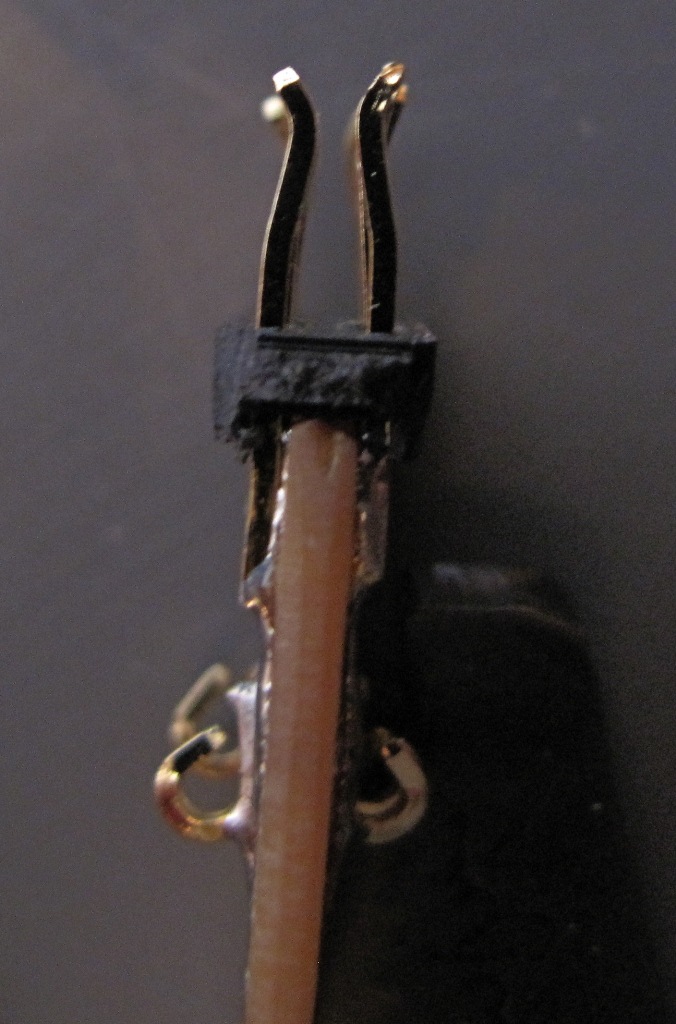

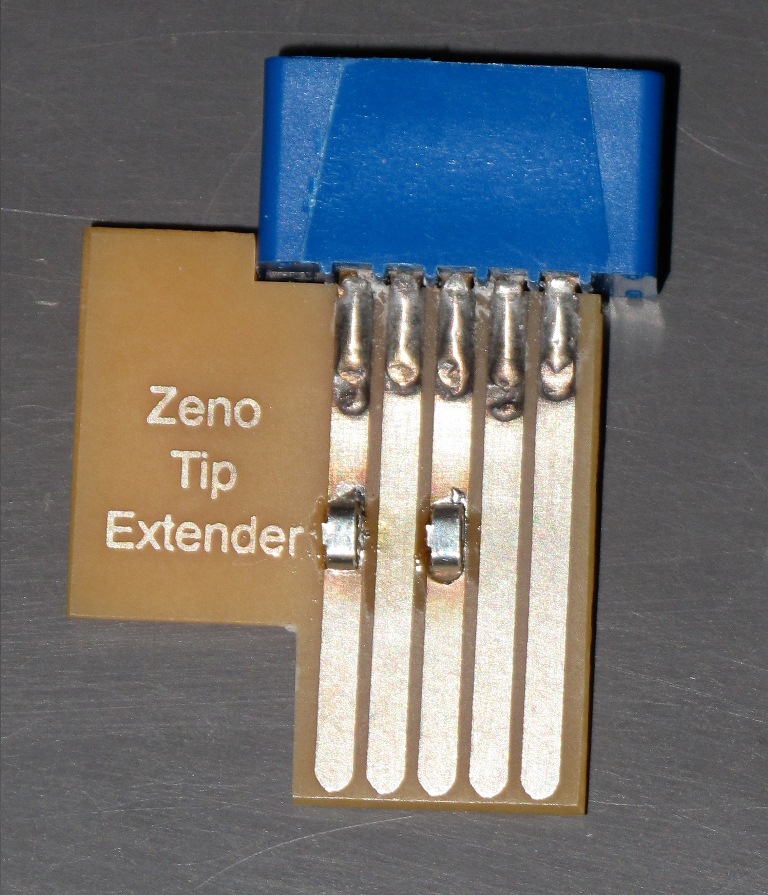

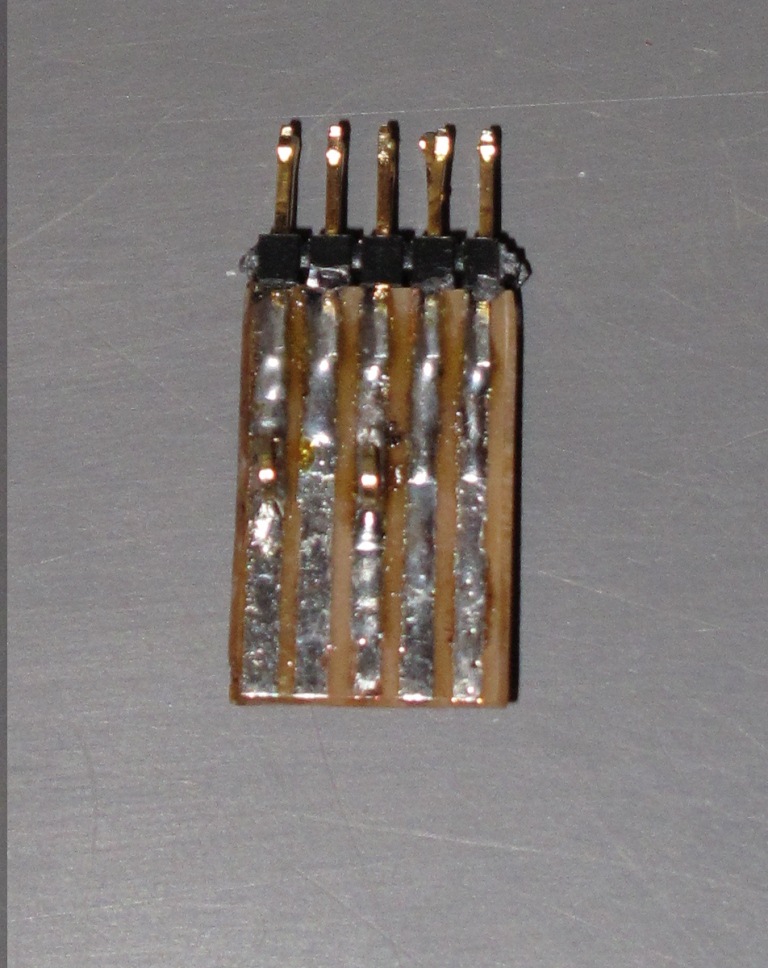

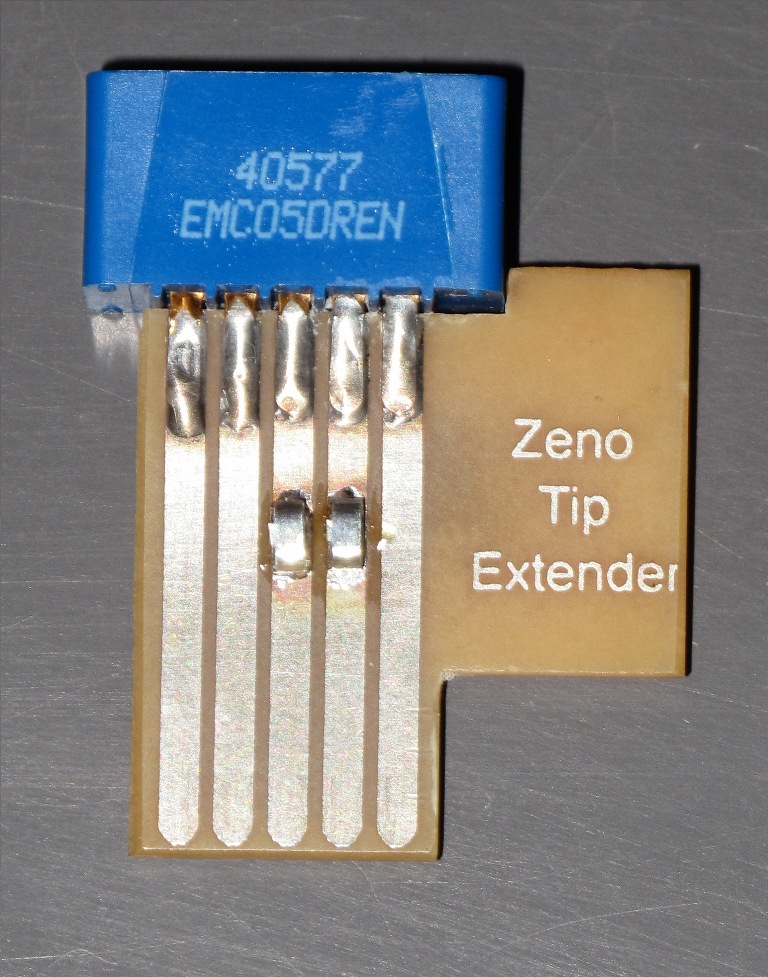

Finally got around to making a halfway decent tip extender for the Zeno. This extender can be used for sniffing the bus and resetting tips. The Sullins card edge connectors are a bit of a pain to get ahold of. They run a little over $4 a piece with a min qty of 10. Sullins will give samples, which is how I got mine. The best PN for this board would be EMC05DRYN-S13 rather than the EMC05DREN that I used. Alternatively you could use a double row .100″ header with the pins bent over, which is what I have been using up to this point.
On a different note, I loaded the 90 count tip data into at 60 count tip and the Zeno powered up without any issues or flashing error codes. I did not actually sit and go through 90 uses but I think it is safe to say that any lower count tip can be transformed into a higher count tip.
